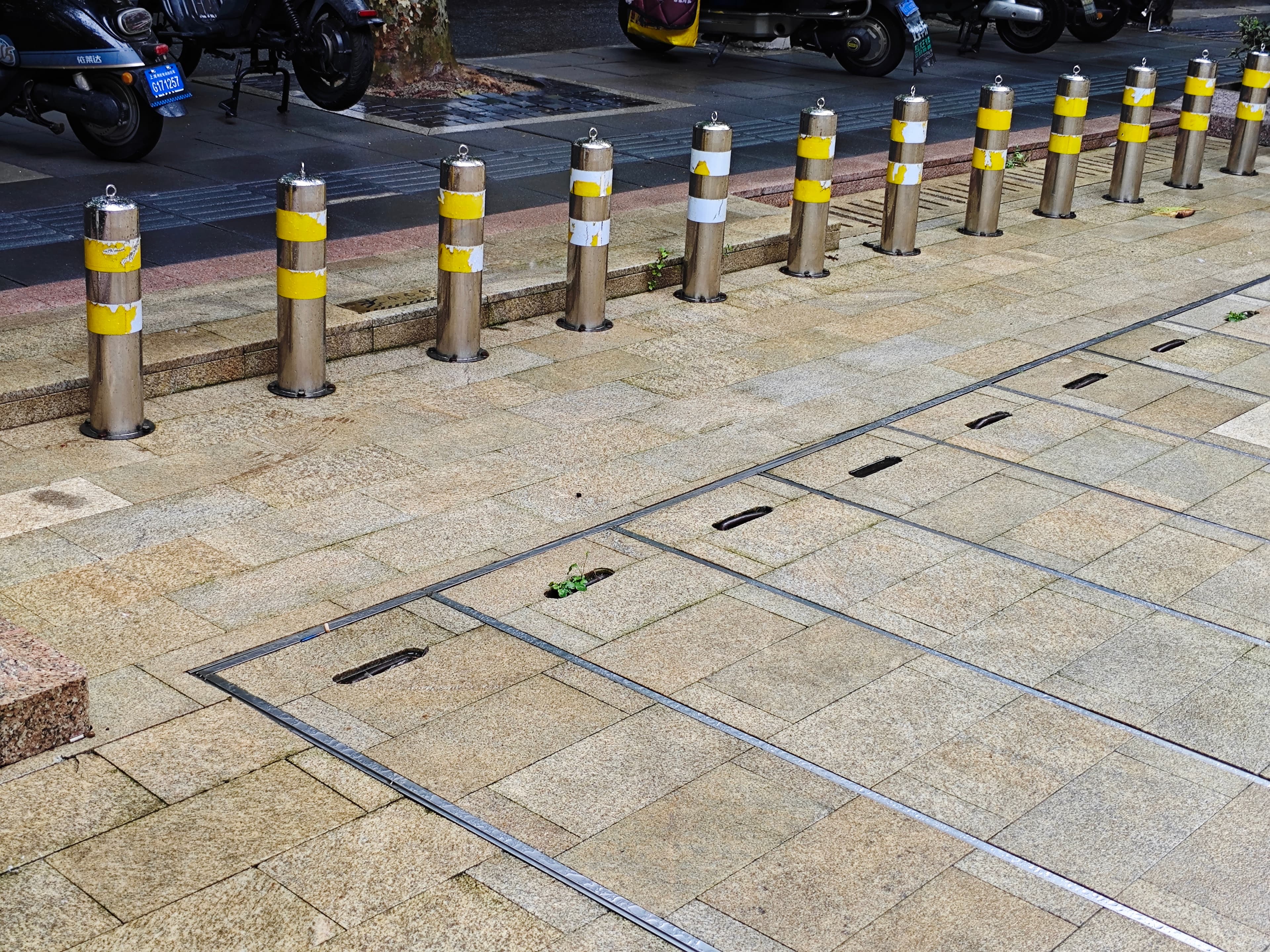

Buried-type steel bollard with fluorescent markings
This buried-type steel bollard keeps vehicles away from walkways, parking bays and building edges. The post is set 250 mm into the ground, so it stays fixed, and it stands 500 mm above ground with a 160 mm diameter.
Fluorescent markings make the post easier to see at dusk and at night, which helps drivers and pedestrians spot the boundary early.
Key features
- Buried installation: 250 mm embedding depth keeps the post fixed in place
- 160 mm diameter and 500 mm above ground for a clear visual barrier
- Fluorescent markings for visibility after dark
- Choice of SUS304 stainless steel or Q235 carbon steel
Specifications
- Outer diameter: Ø160 mm
- Height above ground: 500 mm
- Embedding depth: 250 mm
- Weight: 10 kg per piece
- Material: SUS304 or Q235 steel
- Finish: powder coating or electro-galvanizing
- Minimum order: 5 pieces
- Lead time: 10-15 days
Materials and finishes
- SUS304 stainless steel: an austenitic stainless steel with good corrosion resistance, a clean look and low maintenance.
- Q235 carbon steel: a widely used low-carbon structural steel that welds and forms easily. It needs a protective coating or galvanizing outdoors.
- Powder coating: dry powder applied electrostatically and cured into a hard, even layer. It comes in many colours and resists chipping and fading.
- Electro-galvanizing: a thin zinc layer applied by electroplating that protects the steel from rust.
Match the material to the site: SUS304 suits places where corrosion is a concern, while coated Q235 steel is the more economical choice for drier locations.
Where it is used
- Parking lots and parking bays
- Pedestrian streets and plazas
- School gates and campus entrances
- Residential community entrances
- Building corners and loading areas
How customization works
- Send your drawing, sample photo or size list.
- We confirm the design, material and finish with you.
- Production starts, with quality inspection before shipment.
Frequently asked questions
How deep is the bollard buried?
The post is embedded 250 mm into the ground and stands 500 mm above ground.
What materials are available?
You can choose SUS304 stainless steel or Q235 carbon steel, with powder coating or electro-galvanizing.
What are the minimum order and lead time?
The minimum order is 5 pieces and the lead time is 10-15 days.
Can the markings or size be customized?
Size and markings can be adjusted to your project. Share the details when you enquire.
